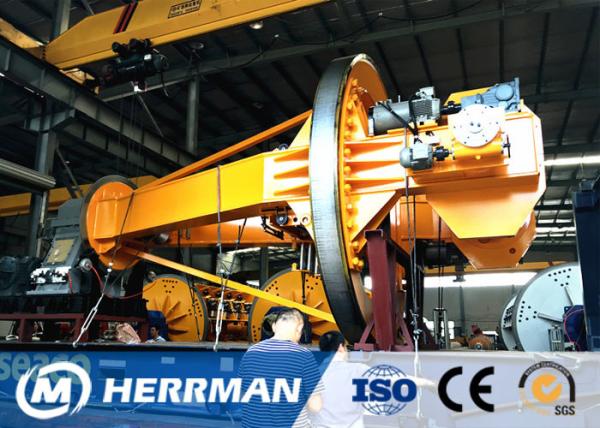

Wire Insulation 30rpm 130mm Diamter Cable Armouring Lay Up Machine

Name: Wire Insulation 30rpm 130mm Diamter Cable Armouring Lay Up Machine
Brand: Herrman
Price: 1 USD

Brand Name : Herrman

Model Number : 2800mm, 3150mm,4000mm

Certification : ISO , CQC , CE , SGS

Place of Origin : China

MOQ : 1 Set

Price : By Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10 Sets per month

Delivery Time : 3 months after receipt of down payment

Packaging Details : To be packed into containers,suitable for long distance sea transportation and well protected against change of climate,moisture and shock.

Product Name : Drum Twisting Machine 2500mm 3600mm Cable Stranding

Application : Cable stranding and Laying Up

Option function : Armoring

Motor : China Siemens

Bearing : NSK or China famous brand

Inverter : Danfoss

Finished Cable diameter : 130mm

Take up size : 2500mm, 3150mm, 4000mm, etc.

Pay off size : 2500mm or according to cable size

Machine direction : From right to left or from left to right

Contact Now

Drum Twisting Machine 2500mm 3600mm Cable Stranding

Description

The machine is used for stranding the MV or HV power cables,split conductors for HV cables, with steel -wire or steel-tape armoring and Cu-wire or Cu-tape screening.

Main Technical standard

Main Technical Data:
Model		JPD-2500	JPD-3150	JPD-3600
Max.rotation speed of T/U & P/O (RPM)		50	30	30
Cabling pitch		can be adjusted, step-less
Max.Linear speed (m/min)		50	40	40
Max.pulling force	Standard	3000
Max.pulling force	Armoring with 96 steel wires	5000
Central P/O reel		Φ2500	Φ3150	Φ3600
P/O reel		Φ1600	Φ2000	Φ2500
T/U reel		Φ2500	Φ3150	Φ3600
Armoring steel wire reel		Φ500	Φ630	Φ630
Main motor power (KW)		45	55	75
Central P/O motor power (KW)		22	15	18.5

Packing photo

Wire Insulation 30rpm 130mm Diamter Cable Armouring Lay Up Machine

Loading photo

Wire Insulation 30rpm 130mm Diamter Cable Armouring Lay Up Machine

Components

Wire Insulation 30rpm 130mm Diamter Cable Armouring Lay Up Machine
